Air Conditioners
Leveraging the full-chain synergy of its IDM model, crmicro provides customers with complete solutions for high-reliability brushless motor control, compressors, PFC and main controllers, as well as semiconductor devices，which helps customers achieve efficient, energy-saving, stable and reliable home appliances.
Solution Overview
Targeting the electronic control platform for split air conditioners (indoor + outdoor units), the solution covers the following chain: high-power variable-frequency drive for the outdoor compressor, auxiliary power for the indoor unit, indoor/outdoor fan control, remote control interaction, and signal sampling. Integrating power devices (IPM/IGBT/SiC MOSFET/SiC diode), multiple PMICs, main MCUs, motor-drive MCUs, op-amps, gate drivers, signal transmission and optocouplers, it improves power conversion efficiency under high temperature and ensures dynamic speed regulation stability and long-term reliability of compressor and fans in hot conditions.
Solution Advantages
-
Energy saving & high efficiency
-
Variable-frequency control extends motor life
-
100% startup success rate
-
Not sensitive to motor parameter variations, adapting to complex operating conditions
-
Low noise at low speeds, eco-friendly and comfortable
-
Low noise at low speeds, eco-friendly and comfortable
Solution Overview
Solution Advantages
Solution Selection

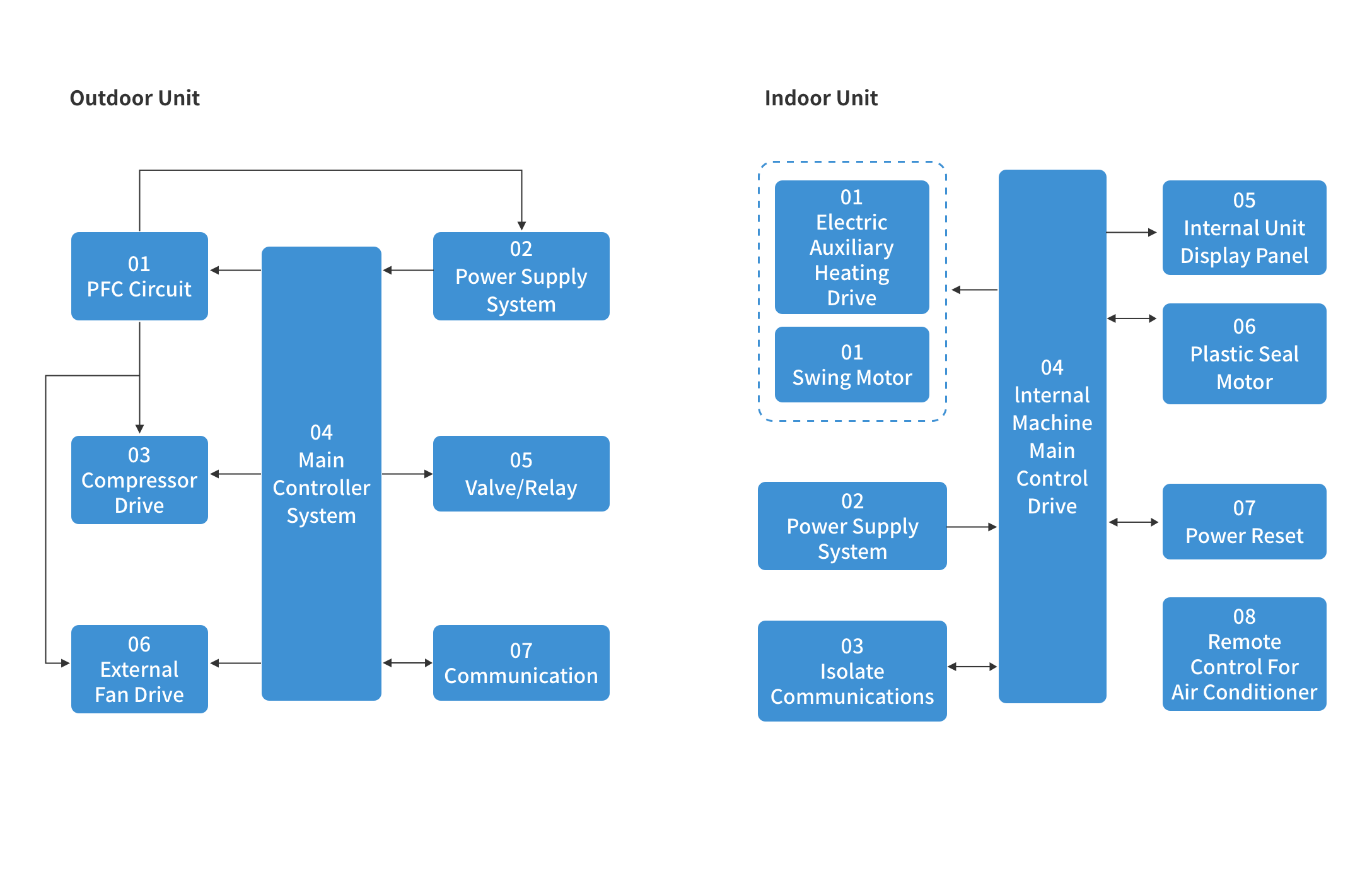

Typical Application Circuit Block Diagram
Air Conditioners
Recommended Selection
No.
Product Line
Product Category
Part Number
01
PMIC
Low-Side Driver
CS42273
01
PMIC
Low-Side Driver
CS42275
01
PMIC
Comparator
CF2903
01
PMIC
Comparator
CN2393
01
PMIC
Comparator
CN2637D
01
IGBT/SiC
IGBT
CRG50T65AQE7F-Z
01
IGBT/SiC
IGBT
CRG30T65AK7H-Z
01
IGBT/SiC
IGBT
CRG50T65AH7F-Z
01
IGBT/SiC
FRD
CRD9C30F60EC
01
PIM
IGBT
CRGMU40T65DQMA5Z
02
PMIC
AC-DC Flyback
PT2333
02
PMIC
Linear Regulator
CW78L05
02
PMIC
Linear Regulator
CW1117
03
IPM
Three-phase Full-bridge IPM Module
DPM15C60FG4
03
IPM
Three-phase Full-bridge IPM Module
DPM15C60LG
03
IPM
Three-phase Full-bridge IPM Module
DPM20C60DG4
03
IPM
Three-phase Full-bridge IPM Module
DPM20C60FG
03
IPM
Three-phase Full-bridge IPM Module
DPM30C60DG4
03
IPM
Three-phase Full-bridge IPM Module
DPM15DH60WG
03
IPM
Three-phase Full-bridge IPM Module
DPM15DS60WG
03
IPM
Three-phase Full-bridge IPM Module
DPM50F60KG
03
IPM
Three-phase Full-bridge IPM Module
DPM50F60GG
03
IGBT/SiC
IGBT
CRG15T65A97SD
03
Chipnext
Low-Noise Operational Amplifier
CN2652
04
MCU
Motor MCU
CS32ME32
04
PMIC
Reset Circuit
CS809X
04
PMIC
Reset Circuit
CS810X
05
PMIC
Darlington Driver
CS2003
06
IPM
Three-phase Full-bridge IPM Module
CS5765NGO
06
IPM
Three-phase Full-bridge IPM Module
CS5766ASCO
06
IPM
Three-phase Full-bridge IPM Module
CS5764AHMO
06
IPM
Three-phase Full-bridge IPM Module
CS5766AHMO
06
IPM
Three-phase Full-bridge IPM Module
DPM06T60CG
06
IPM
Three-phase Full-bridge IPM Module
DPM06T60RG
06
Chipnext
Low-Noise Operational Amplifier
CN2652
07
ISBG
Optocoupler
PC817x
08
PMIC
Darlington Driver
CS2003
09
PMIC
AC-DC Flyback
PT2531
09
PMIC
AC-DC Flyback
PT2333
09
PMIC
Voltage Reference
CW431
09
ISBG
Optocoupler
PC817x
09
PMIC
DC-DC Buck
PT1222
09
PMIC
DC-DC Buck
PT1232
09
PMIC
Linear Regulator
CW78L05
09
PMIC
Linear Regulator
CW1117
10
ISBG
Optocoupler
PC817x
11
MCU
Motor MCU
CS32ME10
11
MCU
Motor MCU
CS32ME11
11
MCU
Motor MCU
CS32ME13
12
MCU
General-purpose MCU
CS32F030
12
MCU
General-purpose MCU
CS32F618
12
MCU
General-purpose MCU
CS88F360
12
PMIC
Display Driver
CS1628
12
PMIC
Display Driver
CS1650
13
IPM
Three-phase Full-bridge IPM Module
CS5764ASCO
13
IPM
Three-phase Full-bridge IPM Module
CS5766ASCO
13
IPM
Three-phase Full-bridge IPM Module
CS5764AHMO
13
IPM
Three-phase Full-bridge IPM Module
CS5766AHMO
13
IPM
Three-phase Full-bridge IPM Module
DPM03T60RM
13
IPM
Three-phase Full-bridge IPM Module
DPM03T60CM
13
IPM
Three-phase Full-bridge IPM Module
DPM06T60RG
13
IPM
Three-phase Full-bridge IPM Module
DPM06T60CG
13
MCU
Motor MCU
CS32ME13
14
PMIC
Reset Circuit
CS809X
14
PMIC
Reset Circuit
CS810X
15
MCU
Remote Control MCU
CS88P419
15
MCU
Remote Control MCU
CS32F421
